Technical specifications, options and accessories


Technical specifications

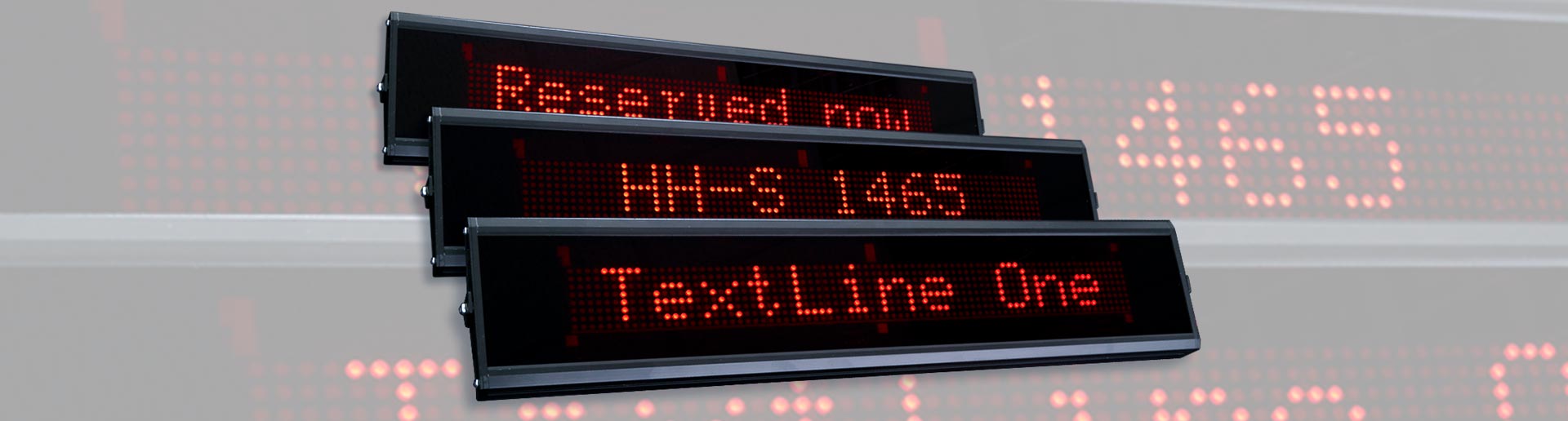

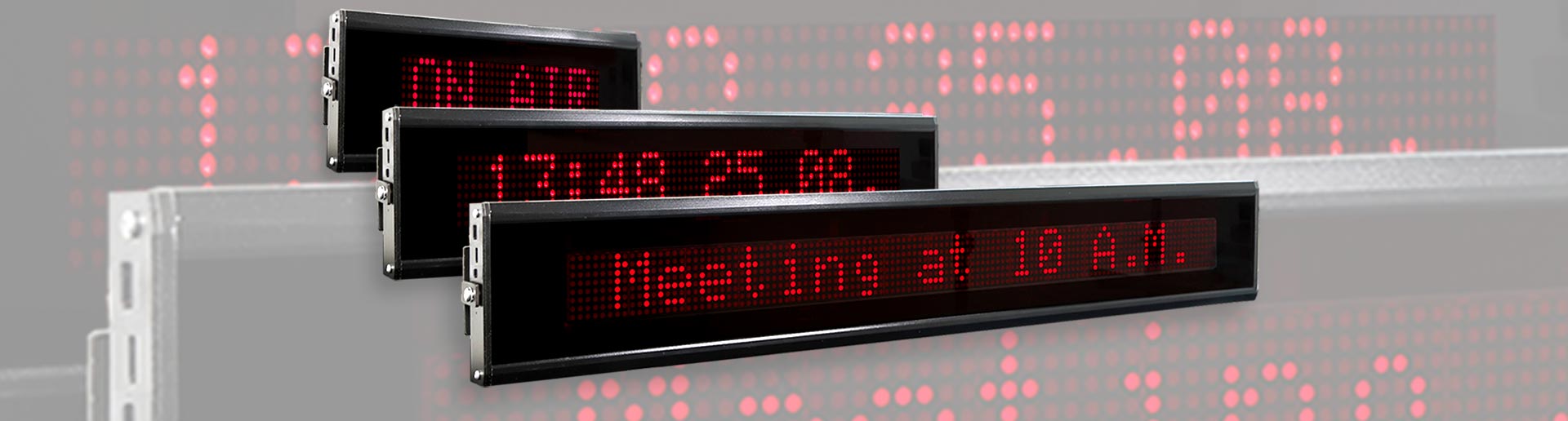

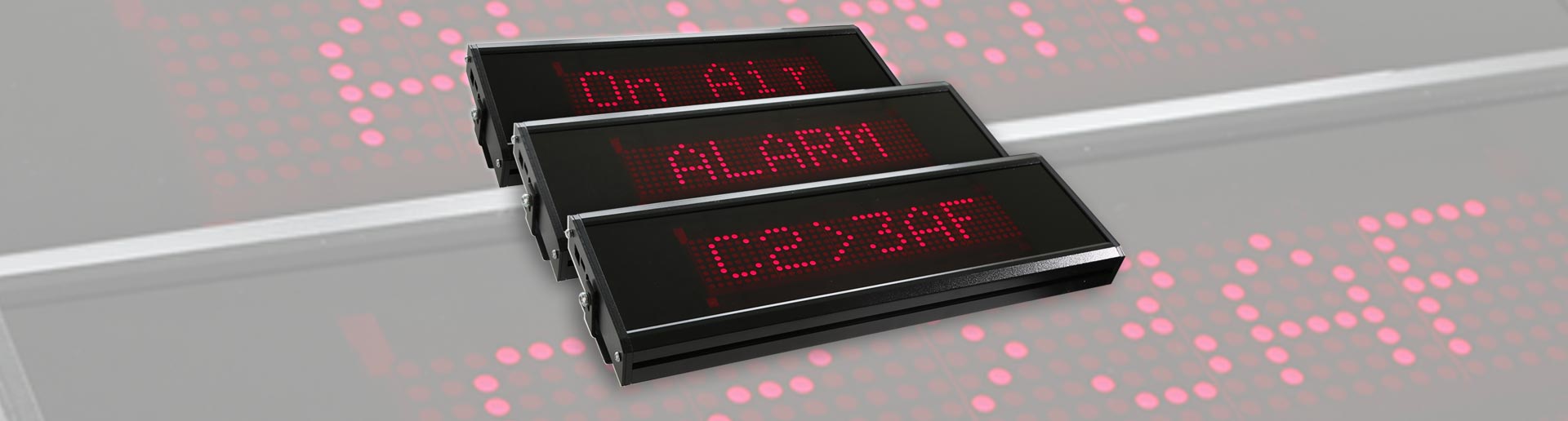

  TL105-06.0R-... TL105-13.0R-... TL105-20.0R-...

Number of characters 6 13 20
Power consumption (max.) approx. 10 W approx. 15 W approx. 20 W
Dimensions 470 x 159 x 41 mm 774 x 159 x 41 mm 1078 x 159 x 41 mm
Weight approx. 1,7 kg approx. 2,6 kg approx. 3,6 kg



  TL105-40.0R-... TL105-60.0R-... TL105-80.0R-...

Number of characters 40 60 80
Power consumption (max.) approx. 35 W approx. 50 W approx. 65 W
Dimensions 1990 x 159 x 41 mm 1902 x 159 x 41 mm 3814 x 159 x 41 mm
Weight approx. 6,5 kg approx. 9,3 kg approx. 12,2 kg




General technical Data

Character height 50 mm
Readability one-sided up to approx. 20 meters
Character set ASCII
Character display static, marquee, flashing
Text memory 255 characters
Housing Aluminum profile black, filter disk plastic
Mounting Mounting kit for wall mounting with adjustable angle
Protection type IP20
Operating temperature 0…40 °C

Options

Interface Ethernet TCP/IP und WLAN TL105-xx.xx-xx-ETH img
Interface USB TL105-xx.xx-xx-USB img
TL105-xx.xx-Ax-xxx External power supply unit Power supply 24 V DC, (100-240 V AC, 50-60 Hz via plug-in power supply) TL105-xx.xx-A0-xxx
Power supply integrated with connection cable 3 x 0,75 mm2, power supply 100-240 V AC TL105-xx.xx-B0-xxx1

1 not available for TL105-60.0R-… and TL105-80.0R-…

Accessories

Mounting elements for pendant mounting (one display) TL105-HM1-A1 img
Mounting elements for pendant mounting (two displays, back to back) TL105-HM2-A1 img
Pair of end caps for cable cover TL105-EK1-A img

1 not available for TL105-60.0R-… and TL105-80.0R-…
